Standard Welding Positioner-HBJ Series

Request For Quotation

Introduce
Scope of Supply
Parameter

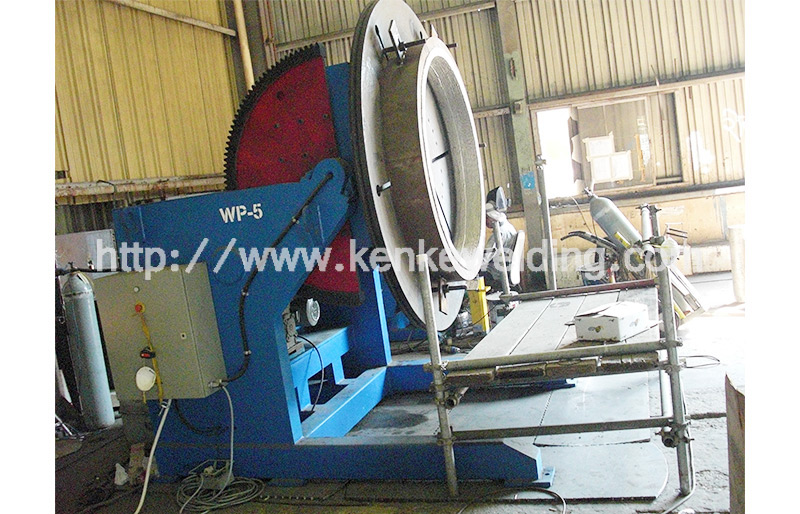

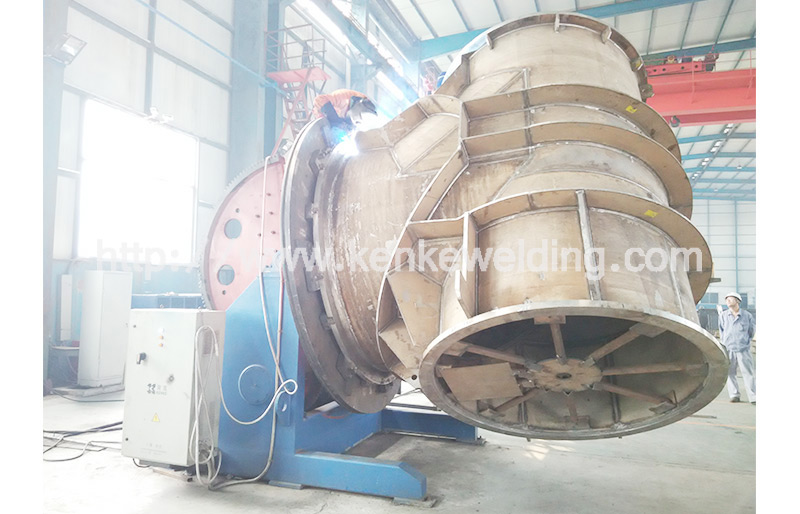

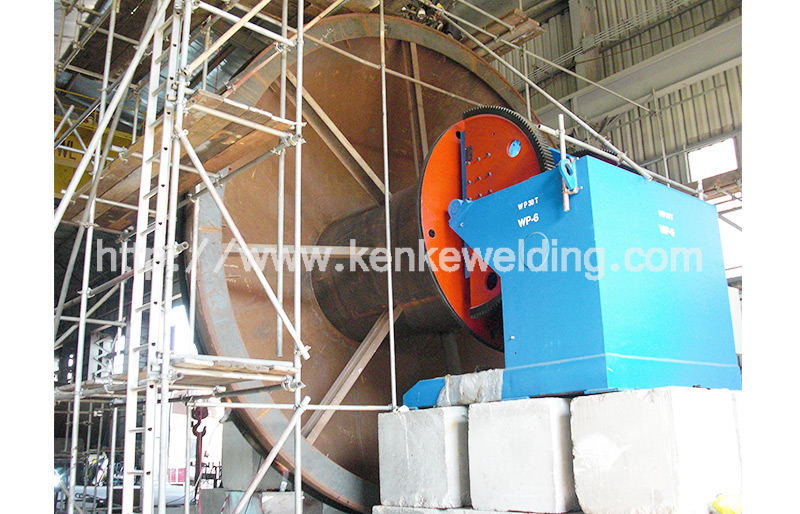

Application

Practical and Versatile

KENKE has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. KENKE’s positioners are with capacities ranging for 300 to 500,000kgs.

KENKE HBJ Series positioners are the best solution to the problem of rotating and tilting demanding work pieces. Angle and speed are all adjustable. They have infinitely variable height control as a result of a remote control of all functions.

1 Main body

1 Electric control system

1 control panel

1 remote pendant

1 foot switch

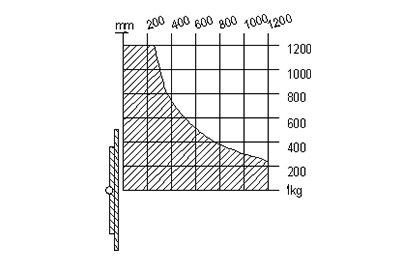

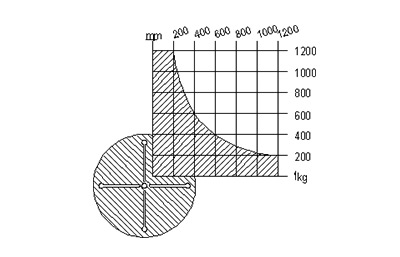

Model	Max. load	Distance (G)*of Gravity	Eccentricity (E)* distance	Rotation speed	Tilting range	Table diameter
HBJ-03	300 kg	200 mm	150 mm	0.1-1 rpm	0°-90°	600 mm
HBJ-06	600 kg	200 mm	150 mm	0.1-1 rpm	0°-90°	1000 mm
HBJ-12	1,200 kg	250 mm	200 mm	0.075-0.75 rpm	0°-90°	1200 mm
HBJ-20	2,000 kg	300 mm	200 mm	0.05-0.5 rpm	0°-90°	1300 mm
HBJ-30	3,000 kg	300 mm	200 mm	0.05 - 0.5 rpm	0°-135°	1400 mm
HBJ-50	5,000 kg	300 mm	200 mm	0.05 - 0.5 rpm	0°-135°	1500 mm
HBJ-100	10,000 kg	400mm	200mm	0.05 - 0.5 rpm	0°-135°	2000 mm
HBJ-200	20,000 kg	600mm	200mm	0.04 - 0.4 rpm	-45°-90°	2500 mm
